Vacuum Heat Treatment Services

Vacuum Heat Treatment Services
Vacuum Heat Treatment Services
Service Code : VHTS 01
Brand Name : METALS INDIA

Our is ISO 9001:2008 certified firm is engaged in providing world-class Vacuum Heat Treatment Services. These services are carried out under the strict surveillance of a team of highly proficient employees. We have established world-class facilities and installed advanced machines & tools that are utilized for providing these services. We follow strict quality policy while executing these services in order to ensure quality of our work. Our Vacuum Heat Treatment Services are acclaimed by customers owing to their reliability, cost-effectiveness and timely execution.

Other details:

  • Vacuum Hardening with Isothermal Quenching
  • Vacuum Tempering
  • Stress Relieving / Tempering
  • Bright Annealing
  • Vacuum Carburising
  • Vacuum Carbo Nitriding
  • Precipitation Hardening
  • Vacuum Brazing
  • Powder Metal Sintering

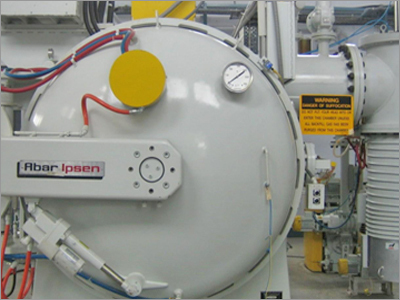

Vacuum Furnance Turbo Treater (Abar Ipsen USA)

Specifications:
  • Quench Pressure: Up-to 12 bar with Isothermal Quench Facility
  • Load Size: 28"W x 40"D x 28" H (700mm x 1000mm x 700mm)
  • Gross Load Weight: 800 Kg
  • Operating Temperature: 200oC to 1315oC
  • Heating: High Convection, Partial Pressure & Vacuum
  • Temperature Uniformity: +-5oC
  • Vacuum Level: 5.0 x 10-5 Torr Range (0.05 microns)
  • Cooling Gas Fan Motor: 300 HP
  • Technology: Ipsen patented technologies AvaCTM (Acetylene Vacuum Carburizing) and AvaC-NTM (Vacuum Carbo nitriding)
  • Application: Stainless Steel, Cold Work Steel, Hot Die Steel, High Speed Steel & Plastic Mould Steel
